Defibrillator Product

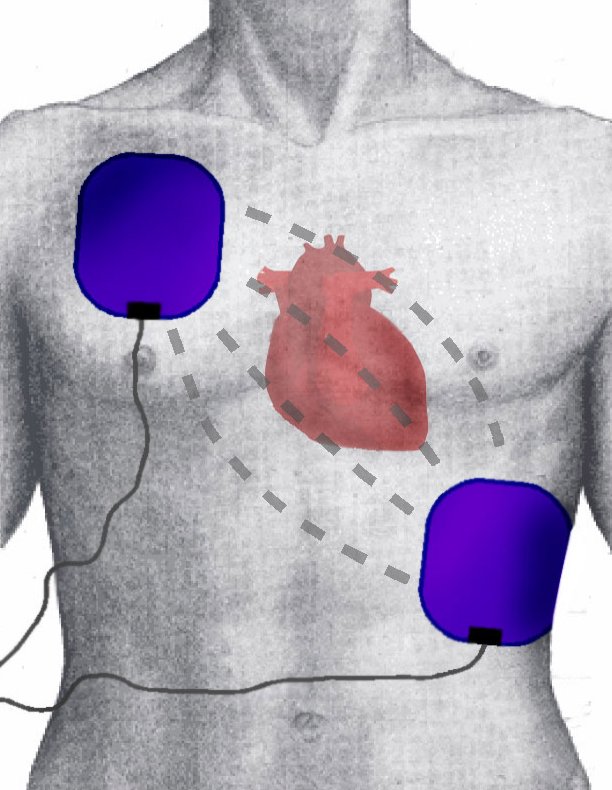

A monitor/defibrillator delivering biphasic shocks via a high-voltage therapy stage, with ECG acquisition, color display, electrode pads, voice prompts, and battery operation. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
12 top-level lines · 71 rows shown · 677 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Housing Assembly 5 parts | defibrillator-housing | 1× | 1 | 5 | assembly |
| 1.1 | Top Case Shell | defibrillator-case-top | 1× | 1 | — | part |
| 1.2 | Bottom Case Shell | defibrillator-case-bottom | 1× | 1 | — | part |
| 1.3 | Carry Handle | defibrillator-handle | 1× | 1 | — | part |
| 1.4 | Battery Access Lid | defibrillator-battery-lid | 1× | 1 | — | part |
| 1.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | High-Voltage Therapy Board 7 parts | defibrillator-hv-therapy-board | 1× | 1 | 207 | assembly |
| 2.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.2 | HV Energy-Storage Capacitor | defibrillator-hv-capacitor | 1× | 1 | — | part |
| 2.3 | HV Charging Circuit 3 parts | defibrillator-hv-charger | 1× | 1 | 42 | assembly |
| 2.3.1 | HV Step-Up Transformer + Rectifier | defibrillator-hv-transformer | 1× | 1 | — | part |
| 2.3.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 2.3.3 | SMD Passive (R/C/L) | smd-passives | 40× | 40 | — | part |
| 2.4 | Biphasic H-Bridge 3 parts | defibrillator-hbridge | 1× | 1 | 36 | assembly |
| 2.4.1 | HV IGBT + Gate Driver | defibrillator-igbt | 4× | 4 | — | part |
| 2.4.2 | Relay | relay | 2× | 2 | — | part |
| 2.4.3 | SMD Passive (R/C/L) | smd-passives | 30× | 30 | — | part |
| 2.5 | Patient Isolation Barrier | defibrillator-hv-isolation | 1× | 1 | — | part |
| 2.6 | SMD Passive (R/C/L) | smd-passives | 120× | 120 | — | part |
| 2.7 | Connector | connector | 6× | 6 | — | part |
| 3 | Control Board 6 parts | defibrillator-control-board | 1× | 1 | 234 | assembly |
| 3.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 3.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 3.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 3.4 | eMMC Flash Storage | defibrillator-flash | 1× | 1 | — | part |
| 3.5 | SMD Passive (R/C/L) | smd-passives | 220× | 220 | — | part |
| 3.6 | Connector | connector | 10× | 10 | — | part |
| 4 | ECG Front-End Board 5 parts | defibrillator-ecg-frontend-board | 1× | 1 | 97 | assembly |
| 4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.2 | ECG Analog Front-End IC | defibrillator-afe-ic | 1× | 1 | — | part |
| 4.3 | Patient Isolation Barrier | defibrillator-hv-isolation | 1× | 1 | — | part |
| 4.4 | SMD Passive (R/C/L) | smd-passives | 90× | 90 | — | part |
| 4.5 | Connector | connector | 4× | 4 | — | part |
| 5 | Display Assembly 4 parts | defibrillator-display | 1× | 1 | 4 | assembly |
| 5.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 5.2 | Touch Digitizer | touch-digitizer | 1× | 1 | — | part |
| 5.3 | Display Bezel | defibrillator-display-bezel | 1× | 1 | — | part |
| 5.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 6 | User Interface 6 parts | defibrillator-user-interface | 1× | 1 | 33 | assembly |
| 6.1 | Shock Discharge Button | defibrillator-shock-button | 1× | 1 | — | part |
| 6.2 | Energy/Mode Selector Dial | defibrillator-mode-dial | 1× | 1 | — | part |
| 6.3 | Status Indicator LED | defibrillator-status-led | 4× | 4 | — | part |
| 6.4 | Speaker | speaker | 1× | 1 | — | part |
| 6.5 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.6 | SMD Passive (R/C/L) | smd-passives | 25× | 25 | — | part |
| 7 | Battery Pack 4 parts | defibrillator-battery-pack | 1× | 1 | 12 | assembly |
| 7.1 | Li-ion Cell, 18650 | li-cell-18650 | 8× | 8 | — | part |
| 7.2 | BMS Board | bms-board | 1× | 1 | — | part |
| 7.3 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 7.4 | Connector | connector | 2× | 2 | — | part |
| 8 | Electrode Pad Assembly 3 parts | defibrillator-electrode-assembly | 1× | 1 | 4 | assembly |
| 8.1 | Defib Adhesive Pad | defibrillator-defib-pad | 2× | 2 | — | part |
| 8.2 | Therapy Cable | defibrillator-therapy-cable | 1× | 1 | — | part |
| 8.3 | Connector | connector | 1× | 1 | — | part |
| 9 | ECG Patient Cable 3 parts | defibrillator-ecg-cable | 1× | 1 | 7 | assembly |
| 9.1 | ECG Lead Wire | defibrillator-ecg-leadwire | 5× | 5 | — | part |
| 9.2 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 9.3 | Connector | connector | 1× | 1 | — | part |
| 10 | Thermal Strip Recorder 5 parts | defibrillator-printer | 1× | 1 | 34 | assembly |
| 10.1 | Thermal Print Head + Drive | defibrillator-printhead | 1× | 1 | — | part |
| 10.2 | Thermal Paper Roll | defibrillator-paper-roll | 1× | 1 | — | part |
| 10.3 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 10.4 | Microcontroller | mcu | 1× | 1 | — | part |
| 10.5 | SMD Passive (R/C/L) | smd-passives | 30× | 30 | — | part |
| 11 | Event Memory Module | defibrillator-memory-module | 1× | 1 | — | part |
| 12 | Self-Test Board 5 parts | defibrillator-self-test-board | 1× | 1 | 39 | assembly |
| 12.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 12.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 12.3 | Internal Test Load Resistor | defibrillator-test-load | 1× | 1 | — | part |
| 12.4 | Relay | relay | 1× | 1 | — | part |
| 12.5 | SMD Passive (R/C/L) | smd-passives | 35× | 35 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $500–$3M · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| gehealthcare.com ↗ | Chicago, US | Medical imaging & devices | 100 units | 12–20 wks |
| siemens-healthineers.com ↗ | Erlangen, DE | Medical systems | 100 units | 12–20 wks |
| 🇳🇱Philips philips.com ↗ | Amsterdam, NL | Health technology | 100 units | 12–20 wks |
| medtronic.com ↗ | Minneapolis, US | Medical devices | 100 units | 12–20 wks |
| 🇨🇳Mindray mindray.com ↗ | Shenzhen, CN | Medical devices | 100 units | 12–20 wks |
