X-Ray Machine Product

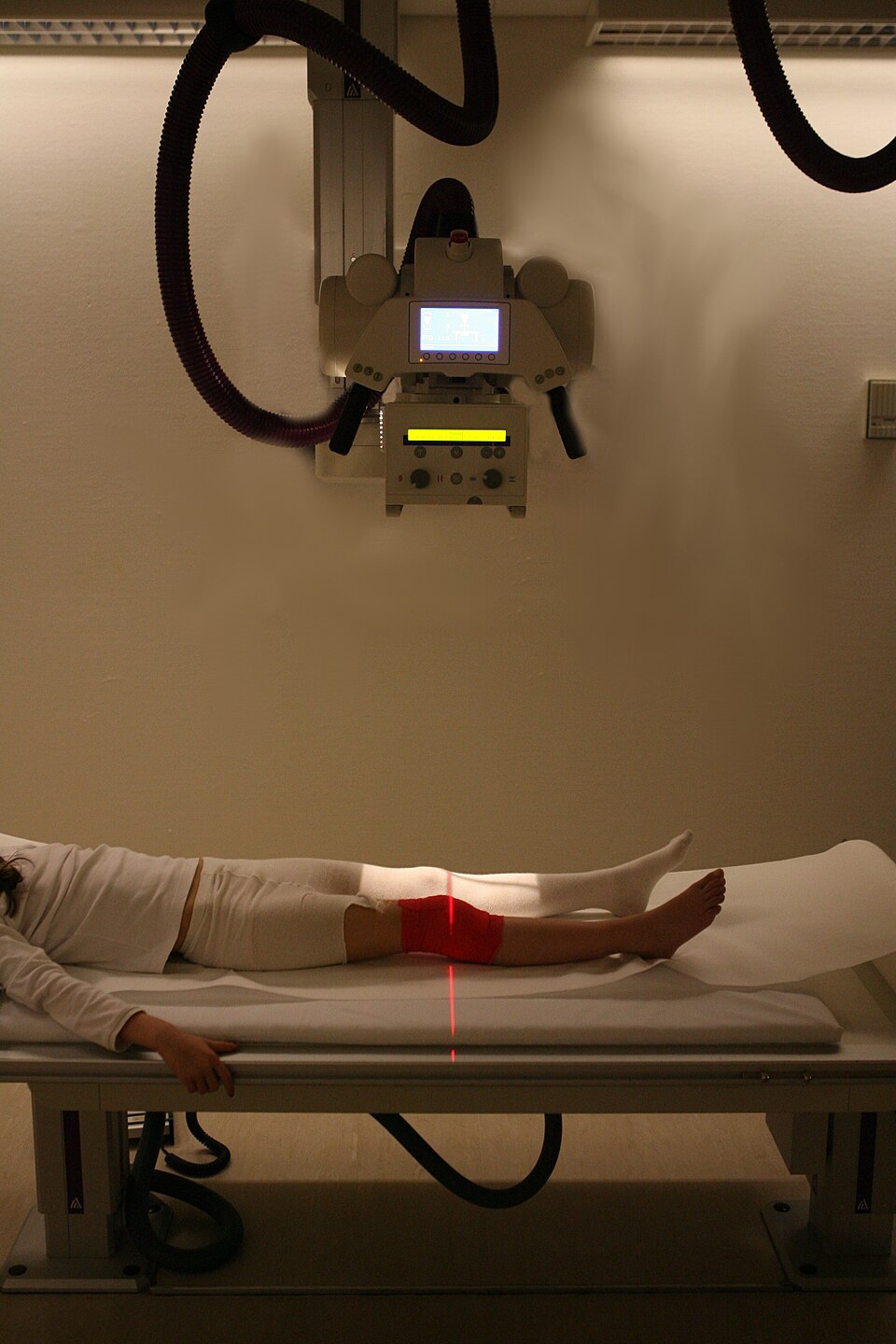

A ceiling/floor-mounted digital radiography (DR) X-ray system. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
11 top-level lines · 91 rows shown · 205 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | X-Ray Tube Assembly 5 parts | x-ray-machine-tube-assembly | 1× | 1 | 31 | assembly |
| 1.1 | Tube Insert 5 parts | x-ray-machine-tube-insert | 1× | 1 | 25 | assembly |
| 1.1.1 | Rotating Anode Target | x-ray-machine-rotating-anode | 1× | 1 | — | part |
| 1.1.2 | Cathode Assembly 1 parts + deeper › | x-ray-machine-cathode-assembly | 1× | 1 | 2 | assembly |
| 1.1.3 | Glass-Metal Envelope | x-ray-machine-glass-envelope | 1× | 1 | — | part |
| 1.1.4 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 1.1.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 1.2 | Tube Housing | x-ray-machine-tube-housing | 1× | 1 | — | part |
| 1.3 | Dielectric Cooling Oil | x-ray-machine-tube-oil | 1× | 1 | — | part |
| 1.4 | Stator Assembly 3 parts | stator-assembly | 1× | 1 | 3 | assembly |
| 1.4.1 | Stator Core (laminations) | stator-core | 1× | 1 | — | part |
| 1.4.2 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 1.4.3 | Slot Insulation | stator-insulation | 1× | 1 | — | part |
| 1.5 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 2 | High-Voltage Generator 5 parts | x-ray-machine-hv-generator | 1× | 1 | 20 | assembly |
| 2.1 | HV Transformer | x-ray-machine-hv-transformer | 1× | 1 | — | part |
| 2.2 | HV Rectifier Stack | x-ray-machine-hv-rectifier | 4× | 4 | — | part |
| 2.3 | Inverter Board 4 parts | x-ray-machine-inverter-board | 1× | 1 | 7 | assembly |
| 2.3.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.3.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 2.3.3 | IGBT Switching Module | x-ray-machine-igbt-pack | 4× | 4 | — | part |
| 2.3.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 2.4 | kV/mA Control Board 4 parts | x-ray-machine-kvma-control | 1× | 1 | 7 | assembly |
| 2.4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.4.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 2.4.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 2.4.4 | Connector | connector | 4× | 4 | — | part |
| 2.5 | Power Supply | power-supply | 1× | 1 | — | part |
| 3 | Collimator 5 parts | x-ray-machine-collimator | 1× | 1 | 31 | assembly |
| 3.1 | Lead Shutter Blade | x-ray-machine-lead-shutter | 4× | 4 | — | part |
| 3.2 | Light-Field Lamp | x-ray-machine-collimator-lamp | 1× | 1 | — | part |
| 3.3 | Added Beam Filter | x-ray-machine-beam-filter | 2× | 2 | — | part |
| 3.4 | Collimator Drive Motor 3 parts | x-ray-machine-collimator-motor | 1× | 1 | 23 | assembly |
| 3.4.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 3.4.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 3.4.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 3.5 | Microcontroller | mcu | 1× | 1 | — | part |
| 4 | Tube Stand / Gantry 5 parts | x-ray-machine-gantry | 1× | 1 | 31 | assembly |
| 4.1 | Telescoping Column | x-ray-machine-column | 1× | 1 | — | part |
| 4.2 | Rail Set | x-ray-machine-rail-set | 1× | 1 | — | part |
| 4.3 | Positioning Drive 4 parts | x-ray-machine-positioning-drive | 1× | 1 | 24 | assembly |
| 4.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 4.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 4.3.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 4.3.4 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.4 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 4.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 5 | Patient Table 5 parts | x-ray-machine-table | 1× | 1 | 52 | assembly |
| 5.1 | Floating Tabletop | x-ray-machine-tabletop | 1× | 1 | — | part |
| 5.2 | Bucky Tray 2 parts | x-ray-machine-bucky-tray | 1× | 1 | 23 | assembly |
| 5.2.1 | Anti-Scatter Grid | x-ray-machine-anti-scatter-grid | 1× | 1 | — | part |
| 5.2.2 | Bucky Grid Drive 2 parts + deeper › | x-ray-machine-bucky-drive | 1× | 1 | 22 | assembly |
| 5.3 | Table Height Drive 3 parts | x-ray-machine-table-drive | 1× | 1 | 23 | assembly |
| 5.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 5.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 5.3.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 5.4 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 5.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 6 | Flat-Panel Detector 5 parts | x-ray-machine-detector | 1× | 1 | 9 | assembly |
| 6.1 | CsI Scintillator | x-ray-machine-scintillator | 1× | 1 | — | part |
| 6.2 | TFT Photodiode Array | x-ray-machine-tft-array | 1× | 1 | — | part |
| 6.3 | CMOS Image Sensor | image-sensor | 1× | 1 | — | part |
| 6.4 | Detector Readout Board 4 parts | x-ray-machine-readout-board | 1× | 1 | 5 | assembly |
| 6.4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.4.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 6.4.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 6.4.4 | Connector | connector | 2× | 2 | — | part |
| 6.5 | Power Supply | power-supply | 1× | 1 | — | part |
| 7 | Control Console 5 parts | x-ray-machine-console | 1× | 1 | 13 | assembly |
| 7.1 | Console Workstation 4 parts | x-ray-machine-workstation | 1× | 1 | 9 | assembly |
| 7.1.1 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 7.1.2 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 7.1.3 | Power Supply | power-supply | 1× | 1 | — | part |
| 7.1.4 | Connector | connector | 6× | 6 | — | part |
| 7.2 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 7.3 | Touch Digitizer | touch-digitizer | 1× | 1 | — | part |
| 7.4 | Exposure Control Switch | x-ray-machine-exposure-switch | 1× | 1 | — | part |
| 7.5 | Power Supply | power-supply | 1× | 1 | — | part |
| 8 | Power Supply | power-supply | 1× | 1 | — | part |
| 9 | Tube Cooling Unit 3 parts | x-ray-machine-cooling | 1× | 1 | 3 | assembly |
| 9.1 | Oil Circulation Pump | x-ray-machine-oil-pump | 1× | 1 | — | part |
| 9.2 | Radiator | radiator | 1× | 1 | — | part |
| 9.3 | Blower Motor | blower-motor | 1× | 1 | — | part |
| 10 | HV & Signal Cabling 3 parts | x-ray-machine-cabling | 1× | 1 | 11 | assembly |
| 10.1 | High-Voltage Cable | x-ray-machine-hv-cable | 2× | 2 | — | part |
| 10.2 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 10.3 | Connector | connector | 8× | 8 | — | part |
| 11 | Exposure Hand/Foot Switch 3 parts | x-ray-machine-handswitch | 1× | 1 | 3 | assembly |
| 11.1 | Relay | relay | 1× | 1 | — | part |
| 11.2 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 11.3 | Connector | connector | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $500–$3M · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| gehealthcare.com ↗ | Chicago, US | Medical imaging & devices | 100 units | 12–20 wks |
| siemens-healthineers.com ↗ | Erlangen, DE | Medical systems | 100 units | 12–20 wks |
| 🇳🇱Philips philips.com ↗ | Amsterdam, NL | Health technology | 100 units | 12–20 wks |
| medtronic.com ↗ | Minneapolis, US | Medical devices | 100 units | 12–20 wks |
| 🇨🇳Mindray mindray.com ↗ | Shenzhen, CN | Medical devices | 100 units | 12–20 wks |
