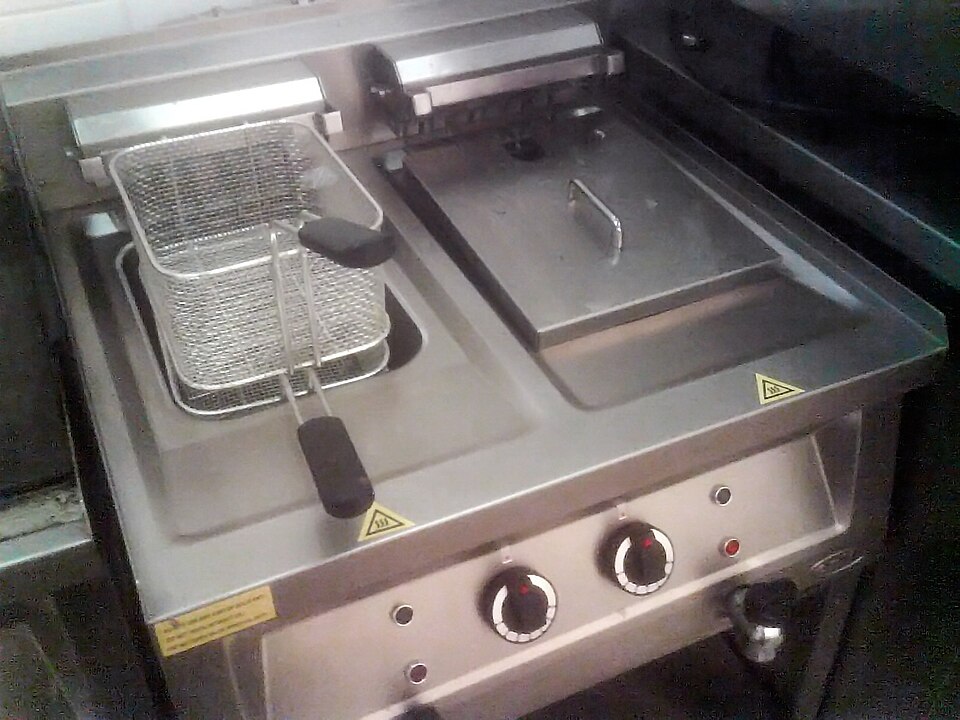

Commercial Deep Fryer Product
A floor-standing electric commercial deep fryer with twin baskets and oil filtration. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
9 top-level lines · 41 rows shown · 65 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Cabinet & Housing 4 parts | commercial-deep-fryer-cabinet | 1× | 1 | 7 | assembly |
| 1.1 | Stainless Cabinet Body | commercial-deep-fryer-cabinet-body | 1× | 1 | — | part |
| 1.2 | Front Access Door | commercial-deep-fryer-front-door | 1× | 1 | — | part |
| 1.3 | Adjustable Leg / Caster | commercial-deep-fryer-leg | 4× | 4 | — | part |
| 1.4 | Exhaust Flue | commercial-deep-fryer-exhaust | 1× | 1 | — | part |
| 2 | Fry Tank Assembly 4 parts | commercial-deep-fryer-tank | 1× | 1 | 4 | assembly |
| 2.1 | Stainless Oil Tank | commercial-deep-fryer-oil-tank | 1× | 1 | — | part |
| 2.2 | Cold Zone Sediment Trap | commercial-deep-fryer-cold-zone | 1× | 1 | — | part |
| 2.3 | Drain Valve & Extension | commercial-deep-fryer-drain | 1× | 1 | — | part |
| 2.4 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 3 | Heating System 3 parts | commercial-deep-fryer-heating | 1× | 1 | 5 | assembly |
| 3.1 | Heating Element | heating-element | 3× | 3 | — | part |
| 3.2 | Thermal Fuse | thermal-fuse | 1× | 1 | — | part |
| 3.3 | Element Mounting Bracket | commercial-deep-fryer-element-bracket | 1× | 1 | — | part |
| 4 | Temperature Control 4 parts | commercial-deep-fryer-control | 1× | 1 | 13 | assembly |
| 4.1 | Control Board 4 parts | commercial-deep-fryer-control-board | 1× | 1 | 10 | assembly |
| 4.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.1.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.1.3 | Relay | relay | 3× | 3 | — | part |
| 4.1.4 | Connector | connector | 5× | 5 | — | part |
| 4.2 | Oil Temperature Probe | commercial-deep-fryer-temp-probe | 1× | 1 | — | part |
| 4.3 | High-Limit Thermostat | commercial-deep-fryer-high-limit | 1× | 1 | — | part |
| 4.4 | Operator Display & Keypad 1 parts | commercial-deep-fryer-display | 1× | 1 | 1 | assembly |
| 4.4.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 5 | Fry Basket 2 parts | commercial-deep-fryer-basket | 2× | 2 | 2 | assembly |
| 5.1 | Wire Mesh Basket Body | commercial-deep-fryer-basket-mesh | 1× | 2 | — | part |
| 5.2 | Insulated Basket Handle | commercial-deep-fryer-basket-handle | 1× | 2 | — | part |
| 6 | Oil Filtration System 4 parts | commercial-deep-fryer-filtration | 1× | 1 | 26 | assembly |
| 6.1 | Filter Pump Motor 3 parts | commercial-deep-fryer-filter-pump | 1× | 1 | 23 | assembly |
| 6.1.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 6.1.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 6.1.3 | Pump Gear Head | commercial-deep-fryer-pump-head | 1× | 1 | — | part |
| 6.2 | Filter Drain Pan | commercial-deep-fryer-filter-pan | 1× | 1 | — | part |
| 6.3 | Filter Paper / Pad | commercial-deep-fryer-filter-paper | 1× | 1 | — | part |
| 6.4 | Oil Level Sensor | commercial-deep-fryer-oil-level-sensor | 1× | 1 | — | part |
| 7 | Power Connection 3 parts | commercial-deep-fryer-power-connection | 1× | 1 | 4 | assembly |
| 7.1 | Power Terminal Block | commercial-deep-fryer-terminal-block | 1× | 1 | — | part |
| 7.2 | Connector | connector | 2× | 2 | — | part |
| 7.3 | Cable Strain Relief Grommet | commercial-deep-fryer-strain-relief | 1× | 1 | — | part |
| 8 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 9 | Fastener Set | fastener-set | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $1k–$500k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| gea.com ↗ | Düsseldorf, DE | Process technology | 20 units | 12–20 wks |
| buhlergroup.com ↗ | Uzwil, CH | Food & materials processing | 20 units | 12–20 wks |
| tetrapak.com ↗ | Pully, CH | Food packaging & processing | 20 units | 12–20 wks |
| jbtc.com ↗ | Chicago, US | Food processing equipment | 20 units | 12–20 wks |
| alfalaval.com ↗ | Lund, SE | Heat transfer & separation | 20 units | 12–20 wks |
