Soft Serve Ice Cream Machine Product

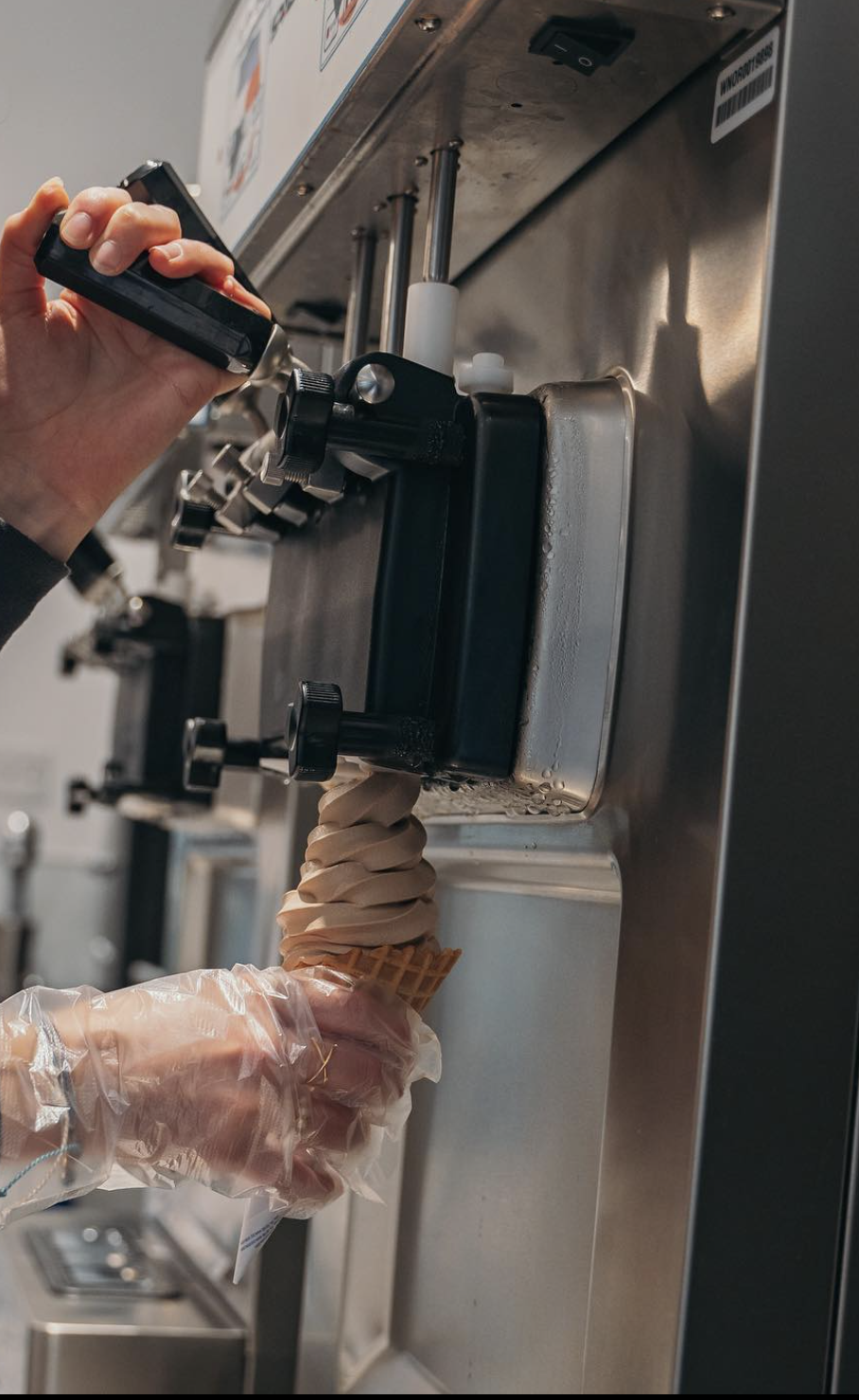

A gravity-fed soft serve freezer: a refrigerated hopper drops liquid mix into a chilled freezing cylinder where a turning beater whips and scrapes it into soft serve, dispensed through a draw valve on demand. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
9 top-level lines · 72 rows shown · 142 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Cabinet & Housing 5 parts | soft-serve-machine-cabinet | 1× | 1 | 9 | assembly |
| 1.1 | Stainless Body Shell | soft-serve-machine-body | 1× | 1 | — | part |
| 1.2 | Service Panel | soft-serve-machine-side-panel | 2× | 2 | — | part |
| 1.3 | Drip Tray | soft-serve-machine-drip-tray | 1× | 1 | — | part |
| 1.4 | Leveling Foot | soft-serve-machine-foot | 4× | 4 | — | part |
| 1.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Mix Hopper 6 parts | soft-serve-machine-mix-hopper | 1× | 1 | 31 | assembly |
| 2.1 | Hopper Tank | soft-serve-machine-hopper-tank | 1× | 1 | — | part |
| 2.2 | Hopper Lid | soft-serve-machine-hopper-lid | 1× | 1 | — | part |
| 2.3 | Hopper Agitator Gearmotor 6 parts | soft-serve-machine-hopper-agitator | 1× | 1 | 26 | assembly |
| 2.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 2.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 2.3.3 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 2.3.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 2.3.5 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 2.3.6 | Agitator Paddle | soft-serve-machine-agitator-paddle | 1× | 1 | — | part |
| 2.4 | Mix-Low Sensor | soft-serve-machine-mix-low-sensor | 1× | 1 | — | part |
| 2.5 | Mix Feed Tube | soft-serve-machine-feed-tube | 1× | 1 | — | part |
| 2.6 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 3 | Freezing Cylinder 8 parts | soft-serve-machine-freezing-cylinder | 1× | 1 | 40 | assembly |
| 3.1 | Freezing Barrel | soft-serve-machine-barrel | 1× | 1 | — | part |
| 3.2 | Beater Auger / Dasher | soft-serve-machine-auger | 1× | 1 | — | part |
| 3.3 | Scraper Blade | soft-serve-machine-scraper-blade | 2× | 2 | — | part |
| 3.4 | Beater Drive Motor 5 parts | soft-serve-machine-drive-motor | 1× | 1 | 26 | assembly |
| 3.4.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 3.4.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 3.4.3 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 3.4.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 3.4.5 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 3.5 | Reduction Gearbox 4 parts | soft-serve-machine-gearbox | 1× | 1 | 6 | assembly |
| 3.5.1 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 3.5.2 | Helical Gear Pair | gear-pair | 2× | 2 | — | part |
| 3.5.3 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 3.5.4 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 3.6 | Drive Belt | drive-belt | 1× | 1 | — | part |
| 3.7 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 3.8 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 4 | Dispensing Assembly 5 parts | soft-serve-machine-dispense | 1× | 1 | 5 | assembly |
| 4.1 | Dispense Faceplate | soft-serve-machine-faceplate | 1× | 1 | — | part |
| 4.2 | Spigot / Draw Valve Body | soft-serve-machine-spigot-body | 1× | 1 | — | part |
| 4.3 | Valve Piston | soft-serve-machine-valve-piston | 1× | 1 | — | part |
| 4.4 | Draw Handle | soft-serve-machine-draw-handle | 1× | 1 | — | part |
| 4.5 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 5 | Refrigeration System 8 parts | soft-serve-machine-refrigeration | 1× | 1 | 34 | assembly |
| 5.1 | Compressor 7 parts | soft-serve-machine-compressor | 1× | 1 | 27 | assembly |
| 5.1.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 5.1.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 5.1.3 | Copper Winding | copper-winding | 1× | 1 | — | part |
| 5.1.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 5.1.5 | Compressor Pump Head | soft-serve-machine-compressor-pump | 1× | 1 | — | part |
| 5.1.6 | Relay | relay | 1× | 1 | — | part |
| 5.1.7 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 5.2 | Condenser Coil | soft-serve-machine-condenser | 1× | 1 | — | part |
| 5.3 | Blower Motor | blower-motor | 1× | 1 | — | part |
| 5.4 | Cylinder Evaporator Coil | soft-serve-machine-cylinder-evap | 1× | 1 | — | part |
| 5.5 | Hopper Evaporator Coil | soft-serve-machine-hopper-evap | 1× | 1 | — | part |
| 5.6 | Expansion Valve | soft-serve-machine-expansion-valve | 1× | 1 | — | part |
| 5.7 | Filter Drier | soft-serve-machine-filter-drier | 1× | 1 | — | part |
| 5.8 | Refrigerant Charge | soft-serve-machine-refrigerant | 1× | 1 | — | part |
| 6 | Control System 5 parts | soft-serve-machine-control | 1× | 1 | 19 | assembly |
| 6.1 | Main Control Board 4 parts | soft-serve-machine-control-board | 1× | 1 | 14 | assembly |
| 6.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.1.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 6.1.3 | Relay | relay | 4× | 4 | — | part |
| 6.1.4 | Connector | connector | 8× | 8 | — | part |
| 6.2 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 6.3 | Touch Digitizer | touch-digitizer | 1× | 1 | — | part |
| 6.4 | Consistency Torque Sensor | soft-serve-machine-torque-sensor | 1× | 1 | — | part |
| 6.5 | Thermostat | soft-serve-machine-thermostat | 2× | 2 | — | part |
| 7 | Power Cord | soft-serve-machine-power-cord | 1× | 1 | — | part |
| 8 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 9 | Fastener Set | fastener-set | 2× | 2 | — | part |
