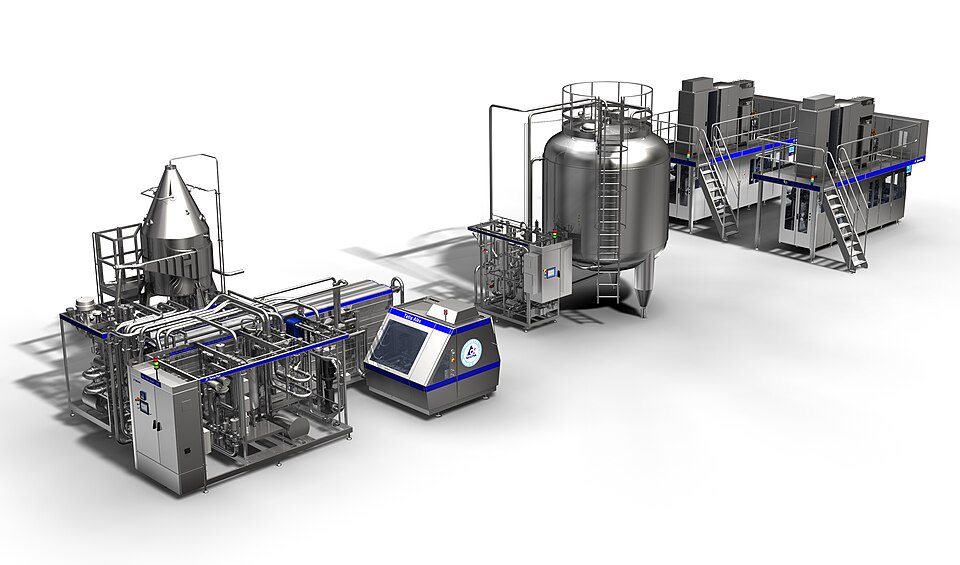

UHT Sterilizer Product
High-temperature short-time sterilization system using direct or indirect heat exchange, holding sections, and aseptic homogenization to extend shelf life of liquid dairy products. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 35 rows shown · 36 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Heat Exchanger Section 5 parts | uht-sterilizer-heat-exchanger-section | 1× | 1 | 12 | assembly |
| 1.1 | Tubular Heater | uht-sterilizer-tubular-heater | 2× | 2 | — | part |
| 1.2 | Plate Cooler | uht-sterilizer-plate-cooler | 2× | 2 | — | part |
| 1.3 | Heat Recovery Section | uht-sterilizer-heat-recovery | 1× | 1 | — | part |
| 1.4 | Pressure Sensor | pressure-sensor | 3× | 3 | — | part |
| 1.5 | Thermistor Cartridge | thermistor-cartridge | 4× | 4 | — | part |
| 2 | Holding Tube 3 parts | uht-sterilizer-holding-tube | 1× | 1 | 3 | assembly |
| 2.1 | Holding Coil | uht-sterilizer-holding-coil | 1× | 1 | — | part |
| 2.2 | Temperature Probe | uht-sterilizer-temperature-probe | 1× | 1 | — | part |
| 2.3 | Holding Insulation | uht-sterilizer-holding-insulation | 1× | 1 | — | part |
| 3 | Homogenizer Interface 3 parts | uht-sterilizer-homogenizer-interface | 1× | 1 | 3 | assembly |
| 3.1 | Homogenizer Pump | uht-sterilizer-homogenizer-pump | 1× | 1 | — | part |
| 3.2 | Homogenizing Valve | uht-sterilizer-homogenizer-valve | 1× | 1 | — | part |
| 3.3 | Flow Distributor | uht-sterilizer-flow-distributor | 1× | 1 | — | part |
| 4 | Steam Generation 3 parts | uht-sterilizer-steam-generation | 1× | 1 | 5 | assembly |
| 4.1 | Pressure Regulator | uht-sterilizer-pressure-regulator | 1× | 1 | — | part |
| 4.2 | Steam Trap | uht-sterilizer-steam-trap | 2× | 2 | — | part |
| 4.3 | Pressure Gauge | uht-sterilizer-pressure-gauge | 2× | 2 | — | part |
| 5 | CIP System 4 parts | uht-sterilizer-cip-system | 1× | 1 | 4 | assembly |
| 5.1 | CIP Pump | uht-sterilizer-cip-pump | 1× | 1 | — | part |
| 5.2 | CIP Tank | uht-sterilizer-cip-tank | 1× | 1 | — | part |
| 5.3 | Chemical Injectors | uht-sterilizer-chemical-injectors | 1× | 1 | — | part |
| 5.4 | Flow Meter | uht-sterilizer-flow-meter | 1× | 1 | — | part |
| 6 | Control Module 3 parts | uht-sterilizer-control-module | 1× | 1 | 3 | assembly |
| 6.1 | PLC Unit | uht-sterilizer-plc-unit | 1× | 1 | — | part |
| 6.2 | HMI Panel | uht-sterilizer-hmi-panel | 1× | 1 | — | part |
| 6.3 | Data Logger | uht-sterilizer-data-logger | 1× | 1 | — | part |
| 7 | Product Pump 3 parts | uht-sterilizer-product-pump | 1× | 1 | 3 | assembly |
| 7.1 | Pump Motor | uht-sterilizer-pump-motor | 1× | 1 | — | part |
| 7.2 | Pump Head | uht-sterilizer-pump-head | 1× | 1 | — | part |
| 7.3 | Pump Seal | uht-sterilizer-pump-seal | 1× | 1 | — | part |
| 8 | Cooling Loop 3 parts | uht-sterilizer-cooling-loop | 1× | 1 | 3 | assembly |
| 8.1 | Cooling Pump | uht-sterilizer-cooling-pump | 1× | 1 | — | part |
| 8.2 | Cooling Chiller | uht-sterilizer-cooling-chiller | 1× | 1 | — | part |
| 8.3 | Expansion Tank | uht-sterilizer-expansion-tank | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $1k–$500k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| gea.com ↗ | Düsseldorf, DE | Process technology | 20 units | 12–20 wks |
| buhlergroup.com ↗ | Uzwil, CH | Food & materials processing | 20 units | 12–20 wks |
| tetrapak.com ↗ | Pully, CH | Food packaging & processing | 20 units | 12–20 wks |
| jbtc.com ↗ | Chicago, US | Food processing equipment | 20 units | 12–20 wks |
| alfalaval.com ↗ | Lund, SE | Heat transfer & separation | 20 units | 12–20 wks |
