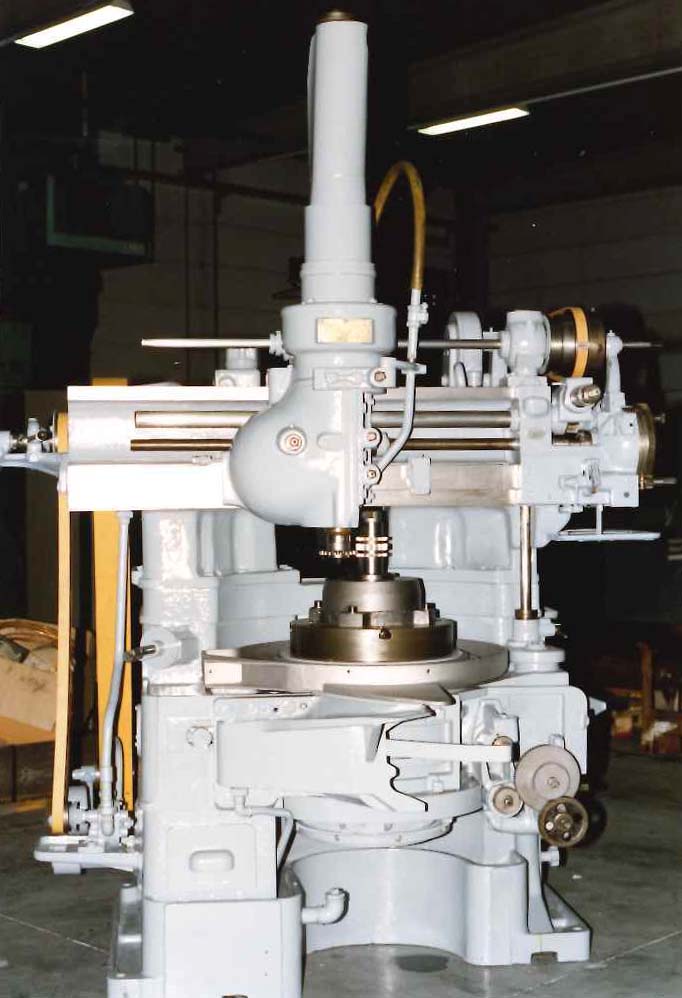

Gear Shaping Machine
ProductOverview
A gear shaping machine cuts gear teeth with a cutter that is itself shaped like a gear. The Pinion Cutter reciprocates vertically through the blank while cutter and workpiece slowly rotate together as if in mesh; the cutting edges sweep out the involute flanks as an envelope of successive positions. This is the generating principle, the machine never forms a tooth space to a template, it rolls one gear (the cutter) against another (the blank) and lets the geometry fall out of the kinematics.
Shaping competes with hobbing as the second major generating process, and it owns the geometries a hob cannot reach: internal gears, shoulder gears and cluster gears where the tool needs only a few millimetres of overrun, herringbone gears, and racks. Internal ring gears for planetary automatic transmissions are the process's highest-volume application. The architecture, stroking Cutter Spindle Unit, indexed Rotary Work Table, and a Generating Drive Train locking them together, dates to the Fellows Gear Shaper of 1896 and survives essentially intact in today's CNC machines.
How it works
Three motions superimpose. First, the cutting stroke: the Stroke Drive reciprocates the Spindle Shaft at up to about 2,000 strokes per minute, each down-stroke shearing chips, each up-stroke returning idle. Second, the generating roll: the table's Index Worm Drive and the cutter spindle rotate continuously in the exact ratio of their tooth counts, so the cutter and blank roll like meshing gears while the cutting happens. Third, radial infeed: the Radial Slide feeds the spindle head toward the table axis until full tooth depth is reached, after which one to two full work revolutions finish all flanks.
Two subtleties make the machine work. Because the cutter would drag its flanks across the fresh surface on the return stroke, the Cutter Relief Mechanism rocks the spindle guide a few tenths of a millimetre clear at bottom dead center, the Relief Cam times this backoff to the stroke so it costs no cycle time. And for helical gears, a mechanical machine fits a Helical Guide with helical splines that twists the spindle as it strokes, so the cutting path follows the helix; each lead requires its own guide, which is why helical shaping on mechanical machines was a tooling commitment.
The ratio between cutter and table is the precision heart of the machine. On mechanical machines a Change Gear Set stack feeds the Index Shaft running down to the table worm, and the Feed Gearbox sets how far the roll advances per stroke. CNC machines delete the entire train: a Electronic Gearbox in the CNC Unit slaves the table Servo Motor to the cutter spindle Encoder at the programmed ratio, and helix is generated by superimposing table rotation on stroke position instead of by a mechanical guide. Setup that took hours of gear picking became data entry at the Operator Panel.
The cutter
The Pinion Cutter is a precision tool: a hardened, relieved gear in HSS or powder-metallurgy HSS, usually TiAlN-coated, with face and flank relief so it can be resharpened on its face many times. Disc cutters mount on the Cutter Adapter taper for external work; shank cutters reach into small internal gears. Cutter accuracy transfers almost directly to the part, so cutters are graded like gears; a good machine and cutter pair delivers DIN 6–7 quality, adequate to go straight to heat treatment and honing.
Structure
Shaping is an interrupted process with full load reversal every stroke, so the structure is massive for its work envelope: a ribbed Column Casting and multi-tonne Bed Casting close the force loop between spindle and Table Bearing. Workholding on the Work Fixture must hold the blank concentric within microns, with the Overarm Tailstock steadying shaft parts from above. Cutting runs flooded in neat oil from the Cutting Oil System, the fine generation slivers are caught by the Oil Filter and the enclosure's Mist Extractor handles the oil fog the stroke rate whips up.
Applications
Shaping survives wherever its access advantage matters: internal ring gears, double-helical sets, gears next to shoulders on cluster shafts, splines, and sprockets. For plain external spur and helical gears in volume, hobbing is faster and has largely taken that work; for internal automotive ring gears, power skiving on machining centers is the modern challenger but shaping remains the installed-base standard.
Gear Shaping Machine parts and their functions
8 top-level parts · 110 parts in total · full bill of materials below| # | Part | Qty | What it does |
|---|---|---|---|
| 1 | Cutter Spindle Unit 7 parts | 1× | Stroking cutter spindle |
| 2 | Rotary Work Table 6 parts | 1× | Rotary work table |
| 3 | Generating Drive Train 7 parts | 1× | Change gears / CNC drive |
| 4 | Column and Saddle 5 parts | 1× | Main column and saddle |
| 5 | Bed and Base 6 parts | 1× | Bed and foundation |
| 6 | Cutter Relief Mechanism 4 parts | 1× | Backoff mechanism |
| 7 | Cutting Oil System 5 parts | 1× | Cutting oil system |
| 8 | Drive and Control Cabinet 7 parts | 1× | Drive and control cabinet |
3D model
No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials for Gear Shaping Machine
8 top-level lines · 59 rows shown · 110 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Cutter Spindle Unit 7 parts | gear-shaper-cutter-spindle | 1× | 1 | 10 | assembly |
| 1.1 | Spindle Shaft | gear-shaper-spindle-shaft | 1× | 1 | · | part |
| 1.2 | Cutter Adapter | gear-shaper-cutter-adapter | 1× | 1 | · | part |
| 1.3 | Pinion Cutter | gear-shaper-pinion-cutter | 1× | 1 | · | part |
| 1.4 | Stroke Drive | gear-shaper-stroke-drive | 1× | 1 | · | part |
| 1.5 | Helical Guide | gear-shaper-guide-bush | 1× | 1 | · | part |
| 1.6 | Stroke Adjustment | gear-shaper-stroke-position | 1× | 1 | · | part |
| 1.7 | Ball Bearing | ball-bearing | 4× | 4 | · | part |
| 2 | Rotary Work Table 6 parts | gear-shaper-work-table | 1× | 1 | 6 | assembly |
| 2.1 | Work Spindle | gear-shaper-table-spindle | 1× | 1 | · | part |
| 2.2 | Index Worm Drive | gear-shaper-worm-drive | 1× | 1 | · | part |
| 2.3 | Work Fixture | gear-shaper-work-fixture | 1× | 1 | · | part |
| 2.4 | Table Bearing | gear-shaper-table-bearing | 1× | 1 | · | part |
| 2.5 | Encoder | encoder | 1× | 1 | · | part |
| 2.6 | Overarm Tailstock | gear-shaper-tailstock | 1× | 1 | · | part |
| 3 | Generating Drive Train 7 parts | gear-shaper-generating-train | 1× | 1 | 55 | assembly |
| 3.1 | Change Gear Set | gear-shaper-change-gears | 1× | 1 | · | part |
| 3.2 | Index Shaft | gear-shaper-index-shaft | 1× | 1 | · | part |
| 3.3 | Feed Gearbox | gear-shaper-feed-gearbox | 1× | 1 | · | part |
| 3.4 | Electronic Gearbox | gear-shaper-electronic-gearbox | 1× | 1 | · | part |
| 3.5 | Servo Motor 4 parts | servo-motor | 2× | 2 | 24 | assembly |
| 3.5.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 2 | 3 | assembly |
| 3.5.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 2 | 19 | assembly |
| 3.5.3 | Encoder | encoder | 1× | 2 | · | part |
| 3.5.4 | Motor Housing | motor-housing | 1× | 2 | · | part |
| 3.6 | Helical Gear Pair | gear-pair | 2× | 2 | · | part |
| 3.7 | Encoder | encoder | 1× | 1 | · | part |
| 4 | Column and Saddle 5 parts | gear-shaper-column | 1× | 1 | 6 | assembly |
| 4.1 | Column Casting | gear-shaper-column-casting | 1× | 1 | · | part |
| 4.2 | Radial Slide | gear-shaper-radial-slide | 1× | 1 | · | part |
| 4.3 | Infeed Cam | gear-shaper-infeed-cam | 1× | 1 | · | part |
| 4.4 | Ball Screw | ball-screw | 1× | 1 | · | part |
| 4.5 | Slide Gibs | gear-shaper-slide-gibs | 2× | 2 | · | part |
| 5 | Bed and Base 6 parts | gear-shaper-base | 1× | 1 | 11 | assembly |
| 5.1 | Bed Casting | gear-shaper-bed-casting | 1× | 1 | · | part |
| 5.2 | Leveling Wedge | gear-shaper-leveling-set | 6× | 6 | · | part |
| 5.3 | Chip Tray | gear-shaper-chip-tray | 1× | 1 | · | part |
| 5.4 | Main Motor | gear-shaper-main-motor | 1× | 1 | · | part |
| 5.5 | Drive Belt | drive-belt | 1× | 1 | · | part |
| 5.6 | Machine Guarding | gear-shaper-guarding | 1× | 1 | · | part |
| 6 | Cutter Relief Mechanism 4 parts | gear-shaper-relief-mech | 1× | 1 | 6 | assembly |
| 6.1 | Relief Cam | gear-shaper-relief-cam | 1× | 1 | · | part |
| 6.2 | Backoff Cradle | gear-shaper-relief-cradle | 1× | 1 | · | part |
| 6.3 | Coil Spring | coil-spring | 2× | 2 | · | part |
| 6.4 | Ball Bearing | ball-bearing | 2× | 2 | · | part |
| 7 | Cutting Oil System 5 parts | gear-shaper-coolant-system | 1× | 1 | 5 | assembly |
| 7.1 | Coolant Pump | coolant-pump | 1× | 1 | · | part |
| 7.2 | Oil Tank | gear-shaper-oil-tank | 1× | 1 | · | part |
| 7.3 | Oil Filter | gear-shaper-oil-filter | 1× | 1 | · | part |
| 7.4 | Nozzle Set | gear-shaper-nozzle-set | 1× | 1 | · | part |
| 7.5 | Mist Extractor | gear-shaper-mist-extractor | 1× | 1 | · | part |
| 8 | Drive and Control Cabinet 7 parts | gear-shaper-electrics | 1× | 1 | 11 | assembly |
| 8.1 | CNC Unit | gear-shaper-cnc-unit | 1× | 1 | · | part |
| 8.2 | Operator Panel | gear-shaper-operator-panel | 1× | 1 | · | part |
| 8.3 | Power Supply | power-supply | 1× | 1 | · | part |
| 8.4 | Relay | relay | 4× | 4 | · | part |
| 8.5 | IGBT Power Module | igbt-module | 2× | 2 | · | part |
| 8.6 | Wire Bundle | wire-bundle | 1× | 1 | · | part |
| 8.7 | LCD Panel | lcd-panel | 1× | 1 | · | part |
